High-Performance CFRP Composite Rolls
Lightweight Industrial Solutions

SRS (Sirius Roll Solutions) takes its name from Sirius, the brightest star in the night sky. Every roll is engineered to stellar precision, rigidity, and reliability. Using precision filament winding, we provide lightweight, high-rigidity, corrosion-resistant solutions replacing traditional metal rolls.

View Product Series → Get a Quote
0
Max Length (mm)
0
Weight Reduction (%)
0
Fiber Modulus (GPa)
0
Product Series

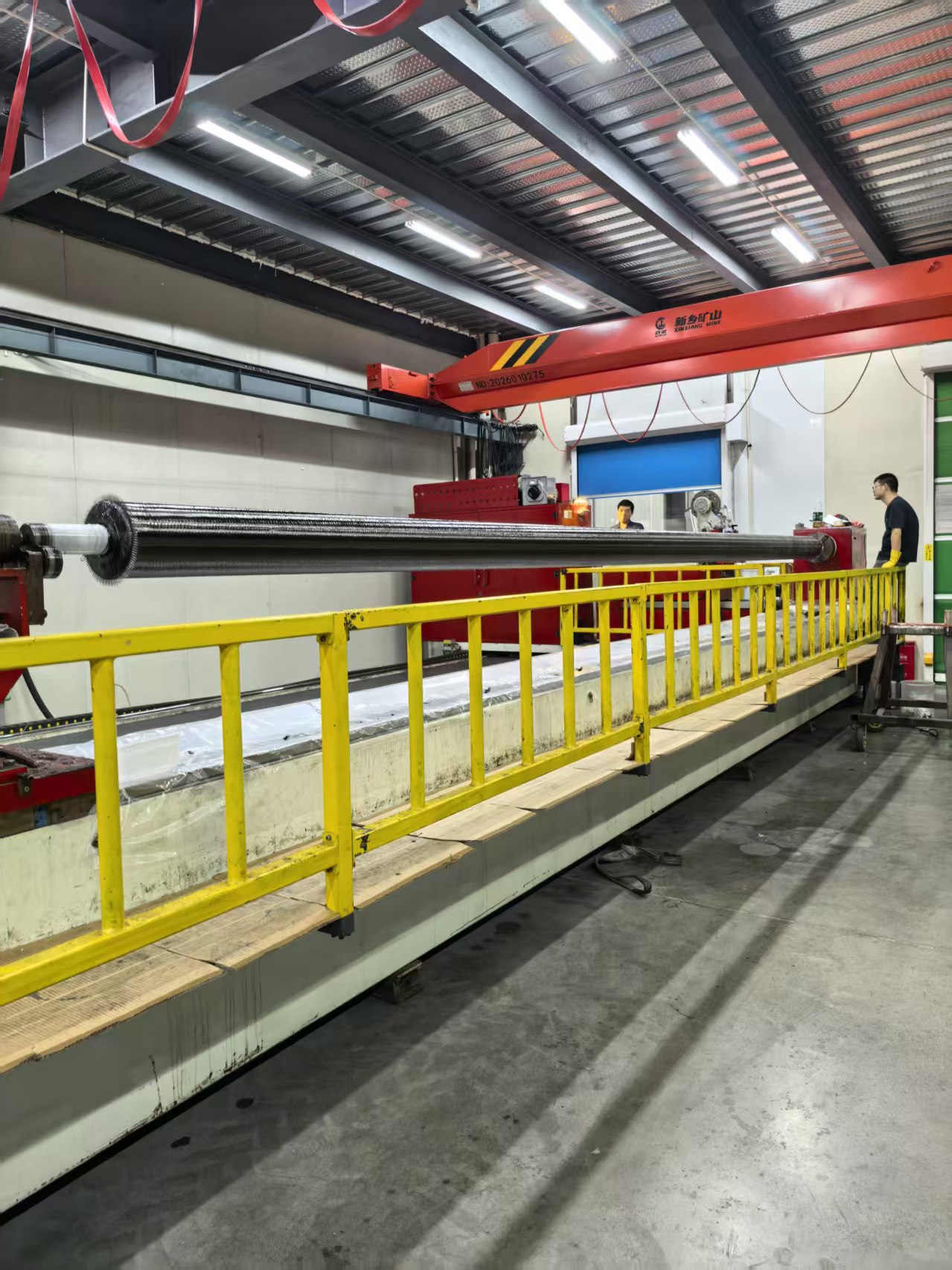

CFRP roll filament winding
PF-CFR-ROLLCFRP Roll Family
The SRS System

SRS = Sirius Roll Solutions · Superior Roll Service

SRS 取自天狼星 Sirius——夜空中最亮的星，为航海者指引方向。如天狼星之于航海者，SRS 之于工业产线——稳定、可靠、恒久如一。

愿景 · 使命 · 价值观

Our Beliefs

没有解不开的问题，只有没定义清楚的问题。

使命 · Mission

以工程之力，解制造之难。

愿景 · Vision

成为制造业最值得信赖的工程解题伙伴。

价值观 · Values
  • 回归本质：用第一性原理拆解问题，不被表象和惯例迷惑。
  • 定义先行：先把问题定义准，再谈怎么解决。
  • 现场为实：到客户生产线上去，用数据和事实说话，不凭经验拍脑袋。

成就更好的自己——SRS工作之道

工程卓越

用第一性原理与数据说话，拒绝“差不多”

坦诚透明

直面问题、公开辩论，对事不对人

心理安全

大胆提问、无惧失败，无责复盘

自主与信任

扁平组织，把决策权交给最懂一线的人

客户与现场

深入一线倾听痛点，用现场数据驱动迭代

持续学习

技术日新，知识共享，文档沉淀

Product Family

Three Product Families

Full-chain capability from technical services to coating processing and CFRP roll manufacturing

PF-SERVICE
Technical Service
Roll design, engineering calculation, finite element analysis (FEA), and on-site technical support throughout the project lifecycle.
PF-COATING
Coating Service
Surface coating and repair, including hard chrome plating, HVOF spraying, nano-ceramic, and wear-resistant conductive coatings.
PF-CFR-ROLL
CFRP Roll
High-performance CFRP composite roll R&D and manufacturing. OD 120-500mm, length up to 11000mm. The focus of this site.
Product Series

Four Standardized Product Lines

From cost-priority to ultimate performance, covering all application scenarios

Series E
Economy
T700-grade (Domestic)
  • Wall 8–15 mm
  • Length 2,000–6,000 mm
  • Modulus 230 GPa
  • Application General industrial
Series M
High Modulus
Domestic M40-grade + T700
  • Wall 10–18 mm
  • Length 5,000–9,000 mm
  • Modulus 377 GPa
  • Application Long-span main rolls
Series P
Precision
M40J + T700S (Toray)
  • Wall 10–18 mm
  • Length 5,000–9,000 mm
  • Modulus 377 GPa
  • Application Multi-condition
Series X
Ultra-High Modulus
M46J + T700S (Toray)
  • Wall 10–20 mm
  • Length 8,500–11,000 mm
  • Modulus 436 GPa
  • Application Ultra-long span
Why Choose Us

Four Core Advantages

🔬
Dual-Source Fiber
Domestic (T700/M40-grade) or imported Toray (T700S/M40J/M46J), flexible cost-performance matching with stable supply chain.
⚡
Lightweight & High Rigidity
Density ~1.55 g/cm³, ~20% weight of 316L stainless steel. Axial stiffness matches or exceeds steel with ~80% lower moment of inertia.
📐
Engineered Laminate Design
Classical Laminate Theory (CLT) ABD matrix optimization, symmetric layup eliminates coupling. First-ply failure index FI<0.35, safety margin >2.8.
🛡️
Multiple Surface Options
Hard chrome, SUS sleeve+chrome, nano-ceramic, conductive wear coating, rubber covering, WC HVOF — from high wear to anti-static.
Performance

CFRP vs 316L Comparison

CFRP rolls outperform 316L stainless steel across key metrics at identical dimensions

Density (inv)
CFRP
1.55
Density (inv)
316L
7.98
Modulus
CFRP
436
Modulus
316L
193
Strength
CFRP
4900
Strength
316L
485
CTE (inv)
CFRP
1e-6
CTE (inv)
316L
16e-6

Key Advantages

  • Weight ~80% lighter
  • Fiber modulus 2.3×
  • Fiber strength 10.1×
  • Dimensional stability 16×
  • Fatigue life 100×+
  • Damping 10–20× faster
  • Moment of inertia ~80% lower
  • Chemical resistance Superior
Surface Treatment

Five Surface Treatment Options

Tailored to real project conditions, from high wear resistance to anti-static

01
SUS Sleeve + Chrome
SUS304 thin sleeve + hard chrome ≥50μm, HRC≥60, re-platable
02
WC HVOF Coating
WC-10Co-4Cr, HV1000-1300, porosity <2%, high wear
03
Nano-Ceramic
Al₂O₃/ZrO₂/SiC + CF/CNT, best CTE match
04
Conductive Wear
Controlled-resistance layer, anti-static, film & Li-battery
05
Rubber / PU Cover
Elastic cushioning contact, for press rolls & traction
Manufacturing

Precision Manufacturing & QA

7-step standardized process, every roll rigorously inspected

STEP 01
Mandrel Preparation
Cleaning, release agent, journal insert installation
STEP 02
Fiber Impregnation
Carbon fiber impregnated with epoxy, precise resin content
STEP 03
Precision Winding
CNC-controlled angle & tension, multi-angle symmetric lamination
STEP 04
Oven Curing
Multi-stage curing, Tg reaches 200°C grade
STEP 05
CNC Grinding
Runout <0.1mm, hard coating Ra<0.08, wall ±0.1mm
STEP 06
Surface Treatment
SUS+chrome / HVOF / nano-ceramic / conductive / rubber
STEP 07
Quality Inspection
Appearance → dimensions → runout → deflection → balance → report, 100% inspection

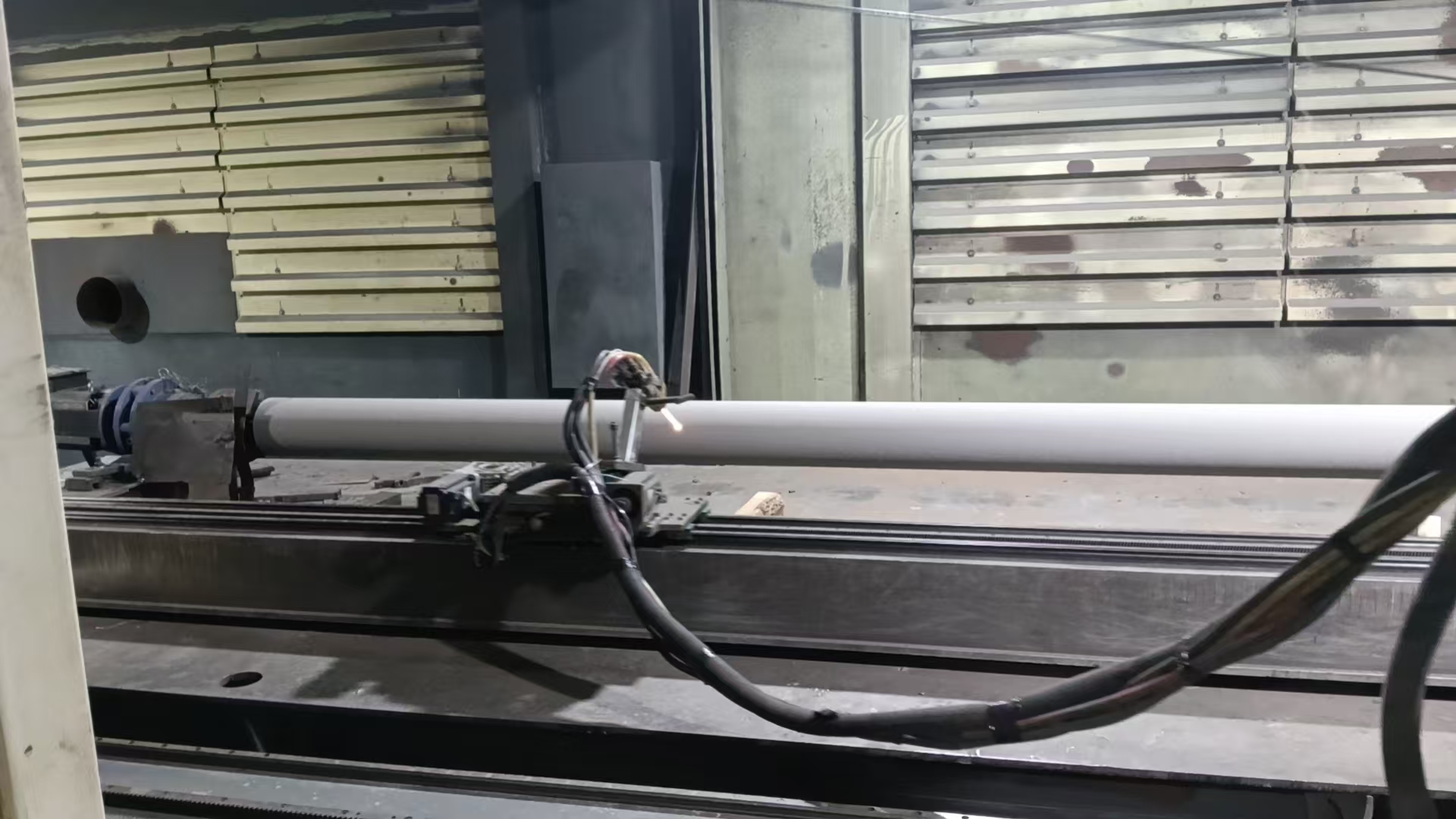

CFRP roll surface coating
Applications

Five Application Industries

Successfully delivered to leading customers in Korea, Japan, and China

🔋
Li-Battery Separator
Series X / M
Non-stick, wear-resistant, high-speed
Multiple options: conductive / nano-ceramic / SUS+chrome / HVOF
📄
Paper Making
Series M / X
High wear, moisture resistant
Rubber / PU / resin covering
🎞️
Optical Film
Series P / M
High precision G2.5, clean
Multiple options: nano-ceramic / conductive / SUS+chrome
🧪
Rubber & Plastics
Series E / P
Elastic contact, cost-effective
Rubber / PU covering
⚗️
Chemical
Series P / X
Corrosion resistant, long life
Nano-ceramic / SUS+chrome
Specifications

Technical Specifications

ParameterSpecificationNotes
Outer Diameter120 – 500 mmLarger customizable
Length1,000 – 11,000 mmFace length up to ~11,000mm
Wall Thickness10 – 20 mmDesigned per series & load
Cylindricity≤ 0.05 mm (typ.)Precision grinding
Runout≤ 0.1 mm (typ.)Two-end support, 3-point
Unit-to-Unit Variation≤ 0.05 mmBatch consistency
Surface RoughnessHard coating ≤0.1 μmCustomizable lower
DeflectionSelf-weight ≤0.7 mm; 150 N/m line load ≤1.3 mmCustomizable (FEA + verified)
Resin Tg200°C grade (measured 200–205°C)Acceptance ≥150°C
Dynamic BalanceG2.5 (higher optional)ISO 1940, >300rpm customizable
References

Typical Project References

Cooling Section Tension Roll
Ø252 × 7800mm
~15mm / ~195kg
Series M
Li-Battery Coating Roll
Ø255 × 8000mm
~16mm / ~202kg
Series M / P
Separator Main Roll
Ø400 × 10800mm
~18mm / ~420kg
Series X
Chemical Extraction Roll
Ø420 × 9500mm
~18mm / ~440kg
Series P
Paper Press Roll
Ø300 × 5800mm
~14mm / ~180kg
Series M
